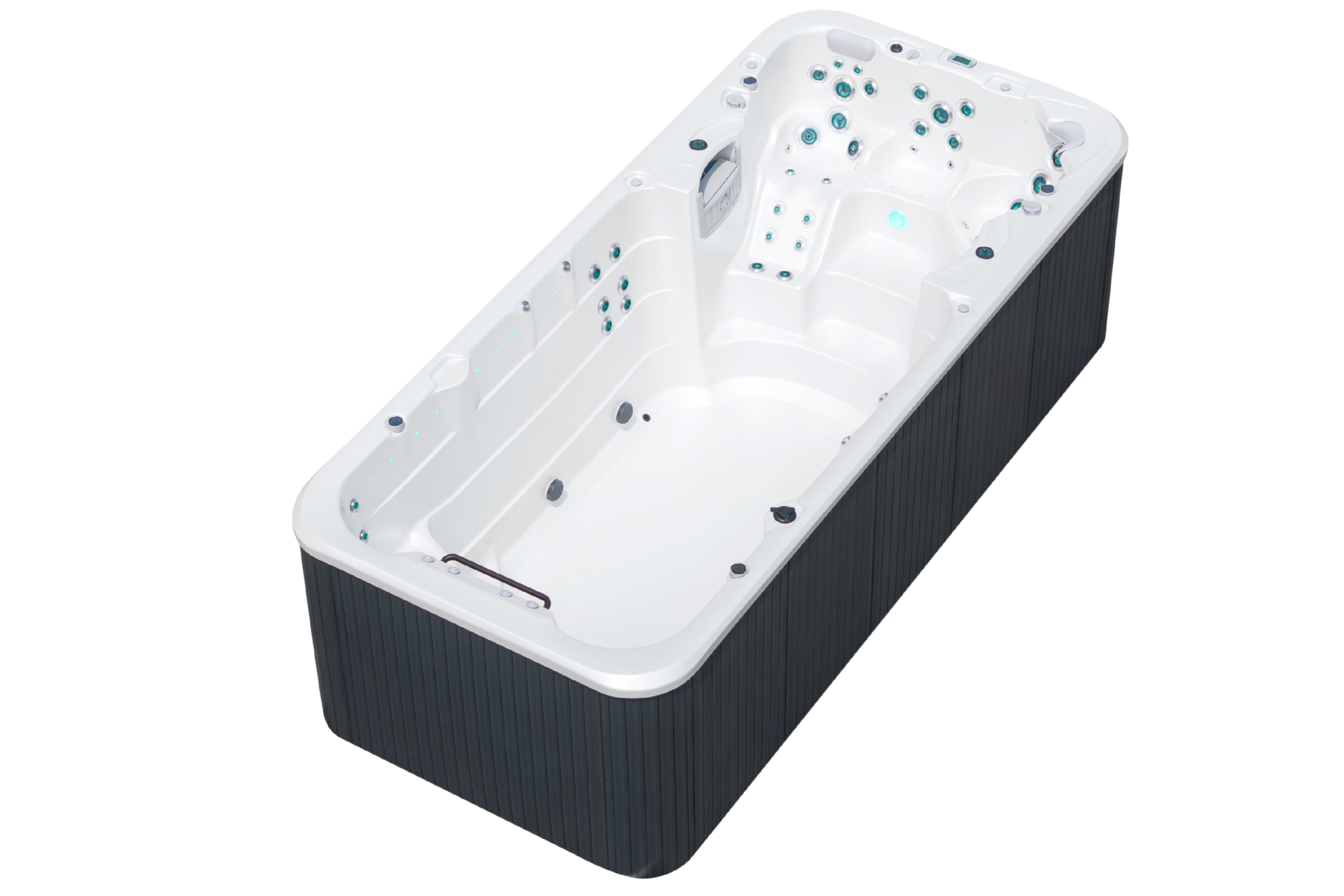

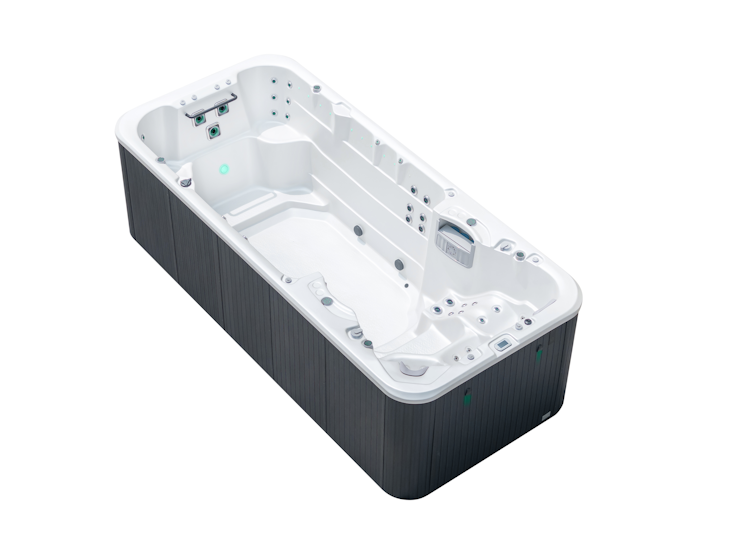

Vortex Aquapace™

Seating 5
Dimensions From 5.11 x 2.29 x 1.50m
Jets Up to 67

Product
Features
Specification

Why choose the Aquapace™?

Choose the Aquapace™ Swim Spa for its perfect mix of performance and comfort, combining powerful swim jets, luxurious hydrotherapy seating, and durable construction built to last.

Features

Check out the top features of the Vortex Aquapace™

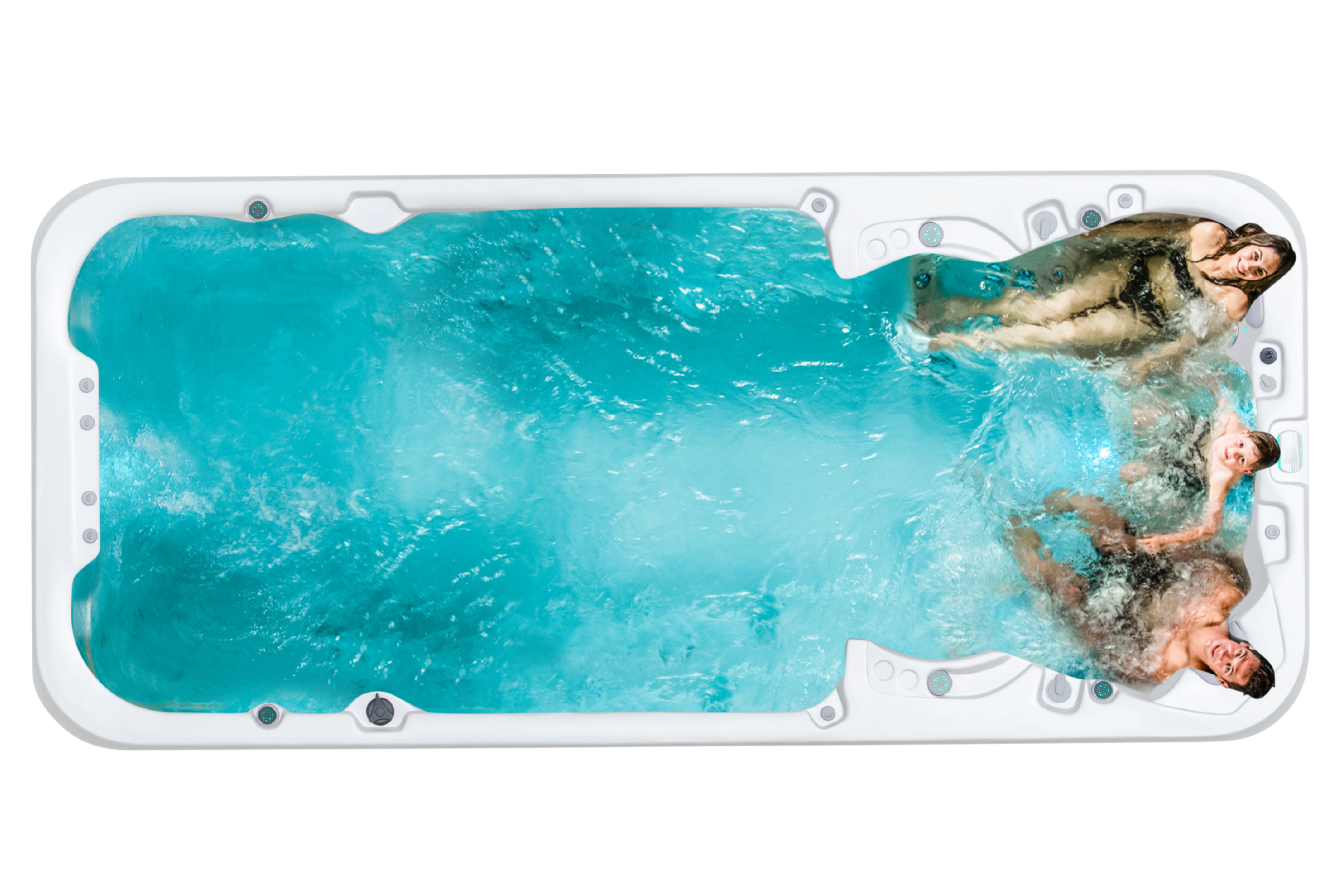

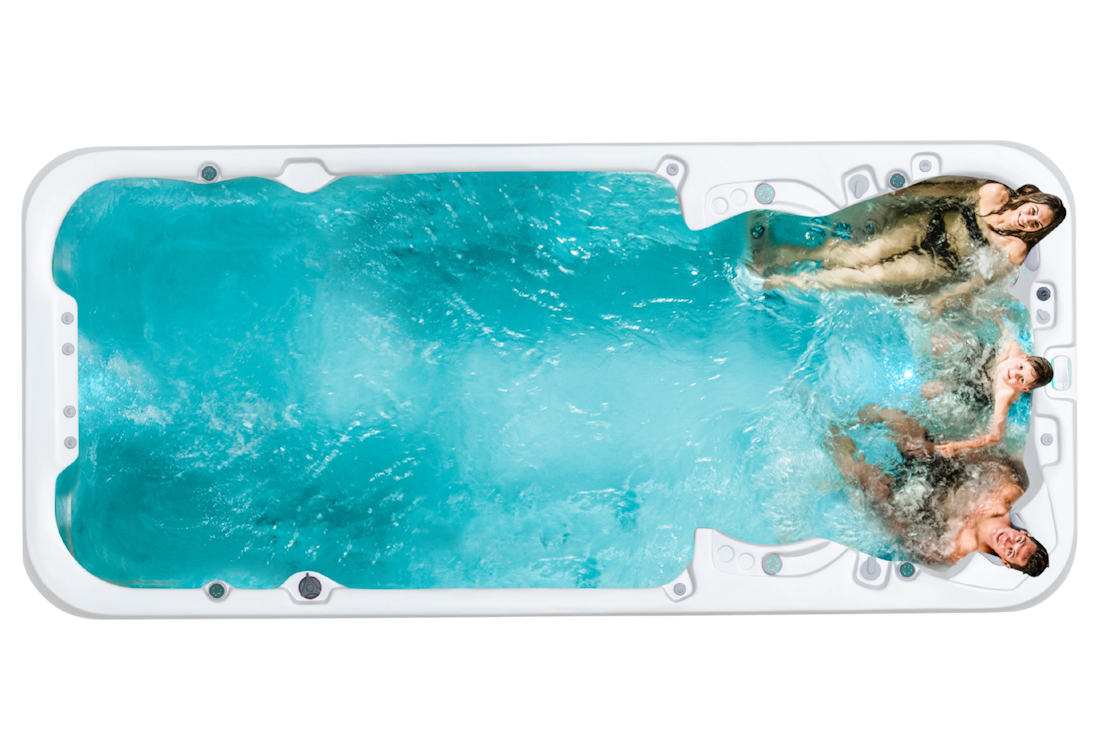

Seating for up to 5 adults

The Aquapace™ Swim Spa comfortably seats up to five adults. Its well-designed layout includes a hydrotherapy lounger with foot jets, a neck and shoulder therapy seat, a child or cool-down seat, and two back massage seats — offering the perfect balance of relaxation, recovery, and family enjoyment.

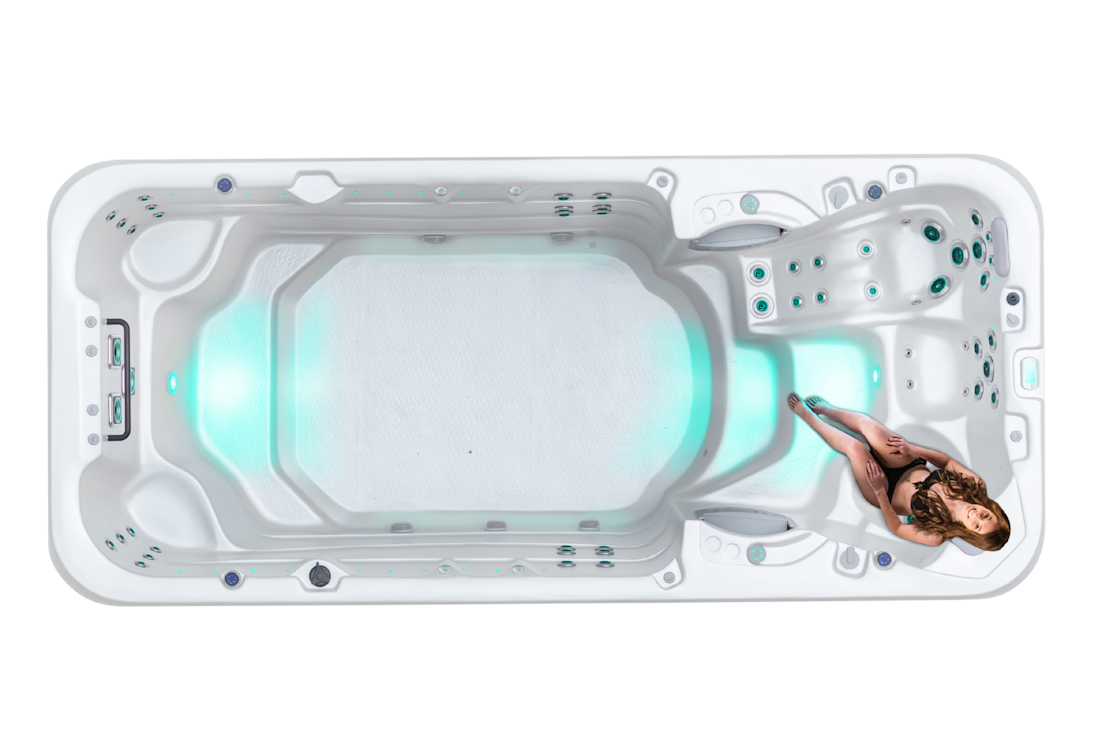

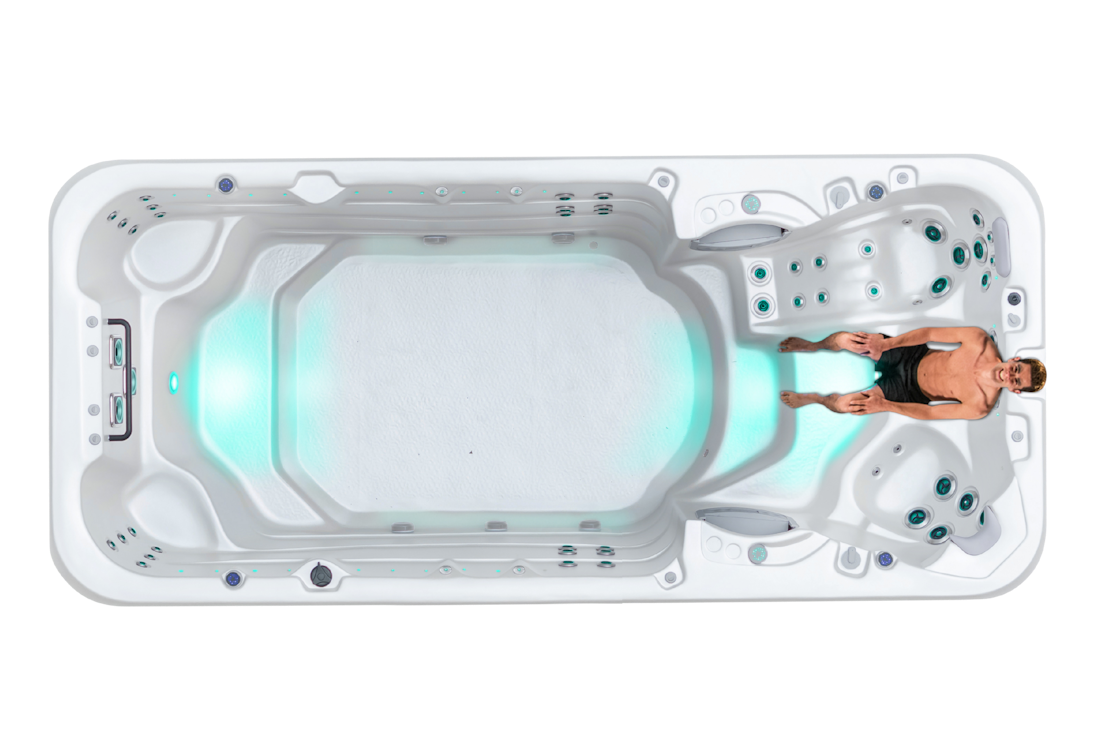

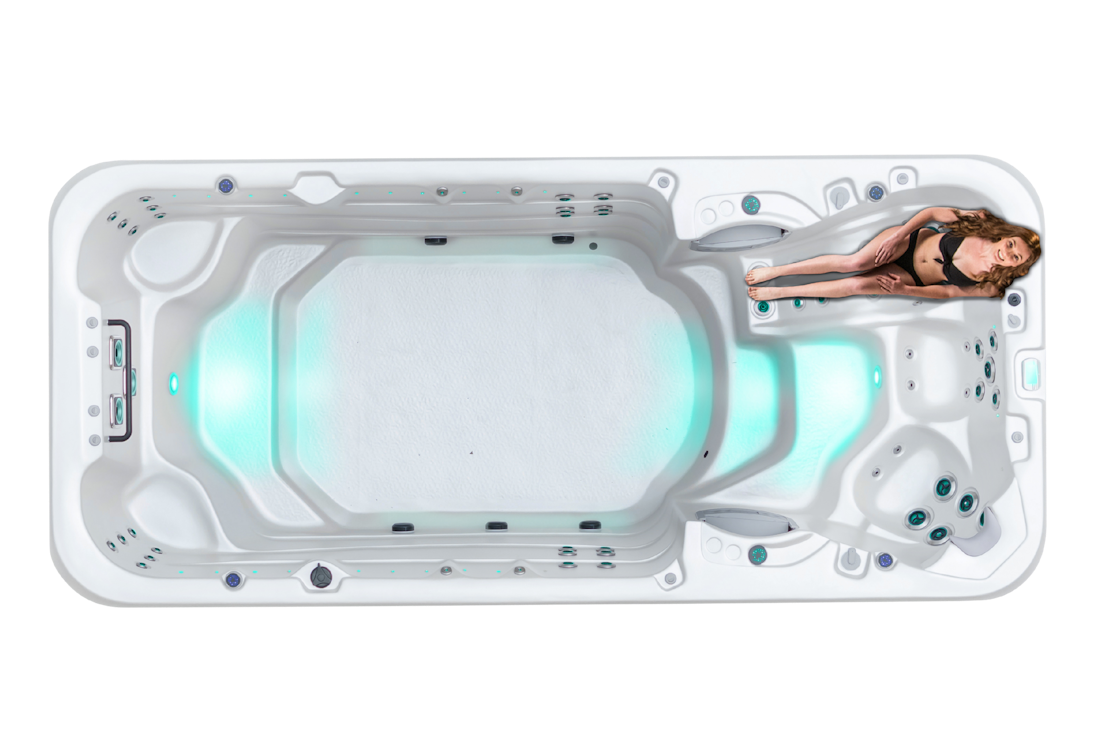

Hydrotherapy Lounger with Foot Jets

Enjoy a full-body massage as the Aquapace™ lounger soothes your back and feet for ultimate relaxation.

Neck & Shoulder Massage Seat

The Vortex™ therapy seat targets your neck and shoulders with powerful downward jets for deep, tension-relieving comfort.

hild / Cool-Down Seat

A raised seat perfect for cooling off or comfortably seating a child during spa time.

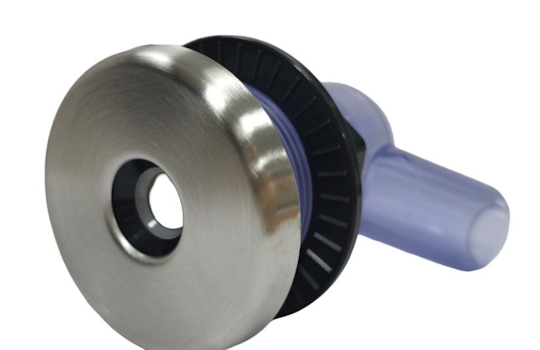

Hydroflow™ stainless steel jets (2024 models)

Hydroflow™ Stainless Steel jets use the famous Vortex™ jet design which provides a premium massage.

Purezone AOS™ Water Care System (2024 Models)

Purezone AOS™ is an auto-cleaning system for spa pools, using UV-Ozone tech to clean water and kill bacteria, making upkeep easier. This system is offered for Vortex™ Spas and Swim Spas starting in 2023. You can buy it with your spa or add it on later.

Hydroglow™ backlit jets and topside controls

Chromotherapy uses colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience. (Aquagym Max™ image shown)

ClearLift™ Automatic Cover (Optional)

ClearLift™, a patent-pending, motorized system, makes lifting heavy swim spa covers effortless with just a key turn. Each Vortex Spa comes with a durable cover that insulates and blocks dirt, debris, and unsupervised access by kids. Traditional covers are bulky, up to 1m x 2.3m and over 15kg. ClearLift™ offers quick, easy spa access, enhancing your usage and enjoyment. It's available as an optional upgrade.

Premium SpaNet™ controller (2024 models)

The SpaNet SV Series controller is designed to maximise energy savings and deliver the lowest possible daily operating cost for your spa using PowerSmart™ technology like Dynamic Thermal Tuning and SmartFiltration™.

Hydroglow™ backlit laminar jets

Laminar jets create perfect streams of backlit water giving a gentle visual display. The jets operate independently of the hydrotherapy jets, so they can be turn your spa into an impressive light display in your backyard.

Tranquil water feature

There is nothing more relaxing than the sound of running water. Add a touch of light and you have created the perfect sanctuary to be rested and mindful.

Drink holder and optional speaker holder

It’s important to stay hydrated while in your spa. Our backlite coasters illuminate your drink and help reduce accidental spills.

Hydroglow™ perimeter and cabinet lighting

The additional lighting to the water edge and functional outside lighting are included with the perimeter and cabinet lighting package. All lighting is customisable to suit your mood.

Automatic aromatherapy dispenser

Aromatherapy is a holistic treatment that uses natural plant extracts to promote health and well-being and enhance both physical and emotional health. The adjustable Vortex™ Aromatherapy system automatically injects Aromatherapy scent into the spa water.

Spa health indicator light (2024 models)

The Vortex™ Spa health indicator light is designed to communicate the spa’s condition to spa user without having to lift the cover. The indicator lights up blue to show it is at the correct temperature, red to indicate a water temperature fluctuation over 5°C, or a fault.

SpaNet™ variable output heater

The SpaNet™ SV Series has a variable output heater. Unlike most controllers, this means when the spa's jet pump is turned on, the heater turns DOWN rather than OFF. This has the benefit of maintaining the spa's temperature while you are using it, rather than cooling it down.

SpaNet™ integrated heat pump interface (Optional)

If you want to save up to 75% on your spa heating cost, you can choose the optional SpaNet™ Hybrid Heat Pump. This integrated system is plug and play with the SV controller.

Audio and Wifi Kit (Optional)

The 2024 Vortex Spas™ WiFi Audio Kit upgrade allows remote spa control and streaming of music or podcasts through high-definition speakers and a subwoofer, all from your smart device.

Specifications

Detailed specifications for the Aquapace™ swim spa.

Specification Sheet

2.29m

1.5m

	Plunge	Pro	Pro Plus	Extreme	Plunge XD	Pro XD	Pro Plus XD	Extreme XD
Dry weight	1090 kg	1132 kg	1181 kg	1245 kg	085 kg	1135 kg	1185 kg	1215 kg
Filled weight (including cover)	9445 kg	9487 kg	9536 kg	9600 kg	8874 kg	8924 kg	8974 kg	9004 kg
Lift weight	1396 kg	1446 kg	1505 kg	1582 kg	1650 kg	1650 kg	1650 kg	1650 kg
Intuitive spa controller	SV3	SV3	SV3	SV4	SV2	SV3	SV3	SV4
Programmable circulation pump	1	1	1	1	1	1	1	1
Jet pumps	1	2	3	4	1	2	3	4
Variable speed airblower	1	1	1	1	Optional	1	1	1
Variable output heater	5.25kW	5.25kW	5.25kW	5.25kW	3kW	6kW	6kW	6kW
Electrical requirements	32 amps	32 amps	32 amps	40 amps	15 amps	32 amps	32 amps	40 amps
Water capacity	8303 itres	8303 itres	8303 itres	8303 itres

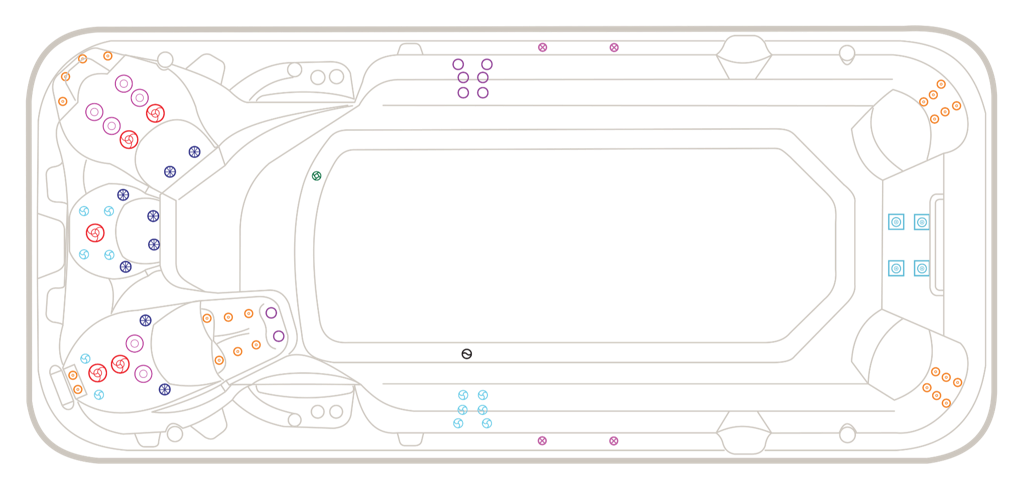

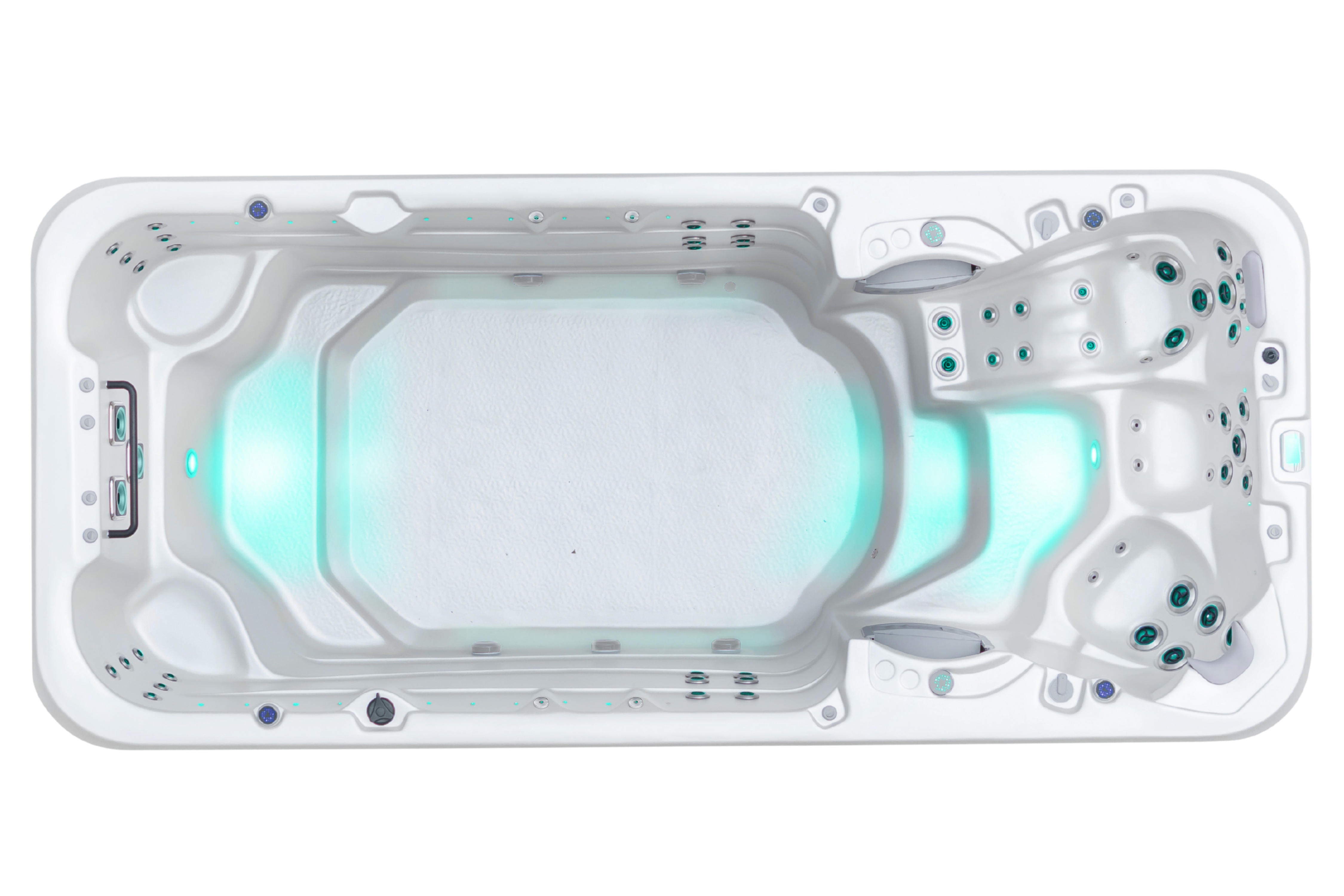

Jet Layout

The Aquapace™ swim spa features a range of hydrotherapy jets for a relaxing massage and fitness training.

Standard Jets

6 x 140mm (5.5") Directional Jet s

5 x 140mm (5.5") Single Roto Jet (2024)s

8 x 102 mm (4") Directional Jet s

12 x 102mm (Jet 4") Single Roto s

24 x 63mm (2.5") Directional Jet (2024)s

8 x 50mm Air Jet s

1 x Underfloor Drainages

1 x Ozone Jets

4 x Laminar Jets

Aquapace™

Aquapace Extreme™

140mm (5.5") Directional Jet

The 140mm directional jets provide an intense, pressure point massage. These are particularly effective at treating knotted muscles in the back.

140mm (5.5") Single Roto Jet (2024)

This large single spinner delivers a rotating massage, mimicking a masseuse's kneading thumb for an effective back massage.

102 mm (4") Directional Jet

This style of directional jets gives a targeted but less intense pressure point massage. It's very effective for a more prolonged treatment of tired muscles.

102mm (Jet 4") Single Roto

The 4-inch single spinning jets offer a similar effect as the larger 5.5-inch variety but given their smaller size, the kneading effect is lighter and more focused.

63mm (2.5") Directional Jet (2024)

These jets are usually used in banks of 8 or more jets and are often coupled with 50mm twin spinners to give a shiatsu style pressure point massage therapy.

50mm Air Jet

As the name implies, the 50mm air jets emit an air stream as opposed to a water stream. These are almost always used under the legs and buttocks to provide a relaxing soft tissue massage treatment.

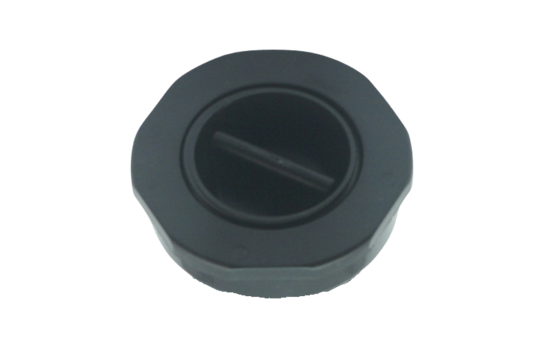

Underfloor Drainages

Diverts spa water through the drain port so you can easily empty and maintain your spa.

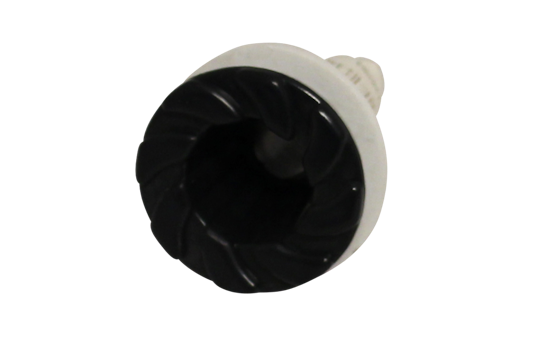

Ozone Jets

The Ozone Jet efficiently disperses ozone into your spa water for enhanced sanitation and water clarity.

Laminar Jet

Provides a smooth, arching stream of water for an elegant waterfall effect—ideal for both visual appeal and soothing hydrotherapy.
